Motion

Program a sprite's speed and location

PreviousEventsNextLooks

Last updated 2 years ago

Was this helpful?

Speed

Set Speed To

Set the X or Y value for the sprite's speed to a particular value.

Change Speed By

Change the X or Y value for the sprite's speed by a specific amount.

Get Speed

Get the X or Y value for the sprite's speed.

Set Velocity

Set or change the sprite's velocity, by a given amount, in the pointing or moving direction.

Position

Move Sprite To

Move the sprite to the x and y location specified in the block

Set Sprite Position

Set the sprite's X, Y, Z or Angle value to a specific position.

Change the sprites X, Y, Z or Angle value by a given amount.

Note: Sprite angle is measured in degrees, so should be a value between 0 and 360.

Get Sprite Position

Get the sprite's current X, Y, Z or Angle value.

Note: Sprite angle is measured in degrees, so should be a value between 0 and 360

Pointer

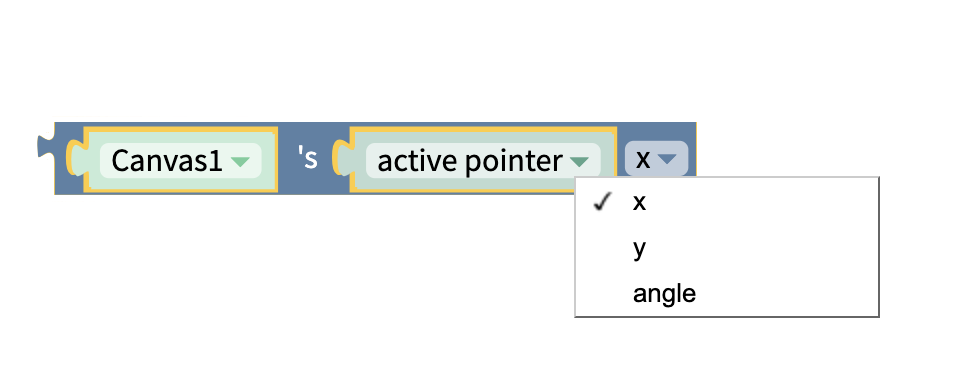

Get Pointer Value

Get the X, Y, or Angle of the where the user tapped on the canvas

Behavior

On the canvas, it's possible to make a sprite either draggable or to have it fixed in position.

Similarly, it's possible for other sprites to pass through a sprite, or it can be made impassable.

Finally, if a sprite is moving, it's possible to programatically cause it to stop moving.

Set Draggable or Passable

Set the draggability or passability of the sprit

Get Draggable or Passable

Get draggability of the sprite

Stop All Sprites

Stop all sprites that are moving.

Examples

Move Sprite to Pointer

When the user clicks on the canvas these blocks will move the Sprite1 to the location that was touched.
